We offer a wide selection of equipment tailored for pipelines and piping systems, as well as other general equipment utilized in mining, oil drilling, and gas extraction and processing. Our range of products includes:
The 20 Tonne Portable Tube Stub Removal Kit offers a more powerful and efficient method of removing tube stubs up to 1” (25.4mm) in dia, by means of a double acting hydraulic cylinder giving powered movement in both directions. The kit comprises of four main parts: A self tapping spear which is screwed into the tube stub,• A double acting hollow hydraulic cylinder that is fitted with a clamping assembly to allow for use with a tool • balancer. This is located over the spear, A “Horse Shoe” locking device which is slotted into the groove at the male square end of the spear.• An easy to operate air powered hydraulic pump. The pump has a hand operated lever providing control of forward, • stop and reverse. Also included in the kit are a pair of 3 metre long hydraulic hoses fitted with quick release couplings that connect the pulling cylinder to the pump, a safety frame, a 3/4” square ratchet handle and a lockable storage box. The self tapping spear is designed to be driven into the tube stub using the spears 3/4” square male drive either by an impact wrench for speed, or manually using the 3/4” square ratchet handle provided. Standard spears are available to suit all tube sizes up to and including 1” O/D. For the removal of tube stubs larger than 1” in diameter please consult us for advice in respect of the necessary special extras.

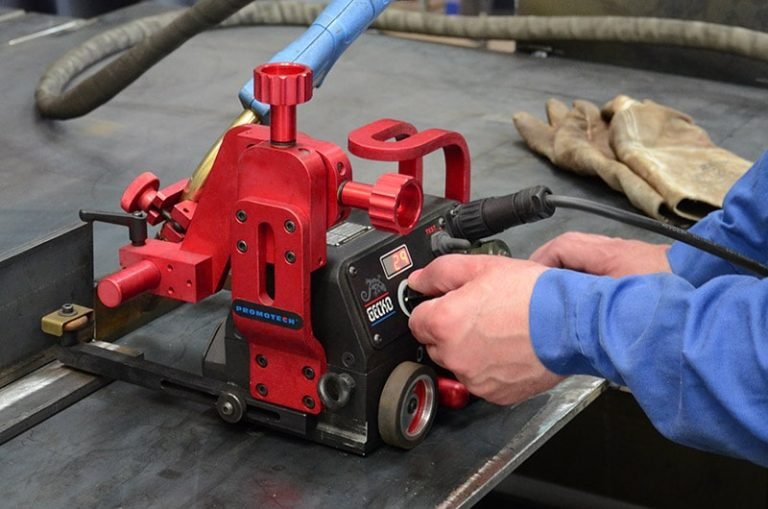

Gecko is a portable mini fillet welder designed to produce consistent high-quality welds. It features 4-wheel drive system with magnetic traction and a control loop feedback mechanism which provides speed stabilization in all welding positions. Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and decreasing filler metal usage, substantially. Lots of optional accessories make Gecko fit for a specific use including cutting and welding of stainless steel constructions. GECKO compact welding carriage weighs only 8 kg (17 lbs).
PRO 51 is a new generation magnetic drilling machine with Morse Taper No. 2 Superior features of PRO 51 include: • compact design • gear box and slide system made as one piece • excellent ratio weight / power • maintenance friendly design • purpose designed motor with heavy duty gear box • maintenance friendly rail guide system Unique semi-automatic gib adjustment system (patent pending) enables simple, fast and always correct fine tuning without any expert knowledge or experience. Replaceable spline at the end of armature shaft eliminates laborious and expensive armature maintenance. Compact design allows the operator to drill very close to side wall and corners.
